Vetroprogetti - Glass Structural Analysis

Through Strand7 calculation software we perform structural calculations of glass structures, individual plates of glass, steel and aluminum structures. We have other software for the design and verification of structures madr of reinforced concrete, masonry, wood, steel, etc ...

All structures and substructures should be verified by structural analysis; It is dictated by technical regulations. We do it always, from simple shelter to large point-fixed facade.
Following the indications of the regulations and recommendations of the major glass manufacturers, using modern calculation finite element programs, we perform structural analysis for:

  • Single glazing for the choice of the thickness;

  • Facades with structure;

  • Stairs, providing actions on structures;

  • Etc.

Stainless steel and glass staircase
Calcolo strutturale di scala fatta con coscali inox e ringhiera e gradini in vetroi stratificato di sicurezza, temprato. Glass Engineering, Ingegneria del Vetro
Full staircase structural analysis. Glass for the steps, steel leg for the structure
FEM model calculation of coverage and steel and glass facade
Modello di calcolo di strttura reticolare in acciaio inox, con sopra fissate crociere e rotule per facciata appesa (a fissaggio puntuale). Glass Engineering, Ingegneria del Vetro
FEM model calculation of roof and stainless steel and glass facade
Stainless steel and glass structural analysis
Modello FEM (agli elementi finiti) di scala in acciaio inox e gradini in vetro. Glass Engineering, Ingegneria del Vetro
Stainless steel and glass structural analysis. Glass panes for the styeps, stailness steel for the side structure.
Shelter with a punctual fastening system, made with stainless steel tension rods
Analisi strutturale di una pensilina in vetro fissata per punti, tramite crociere e rotule. vetro stratificato di sicurezza, temprato antigrandine. Glass Engineering, Ingegneria del Vetro
Glass shelter (structural glass) with a punctual fastening system, made with stainless steel tension rods

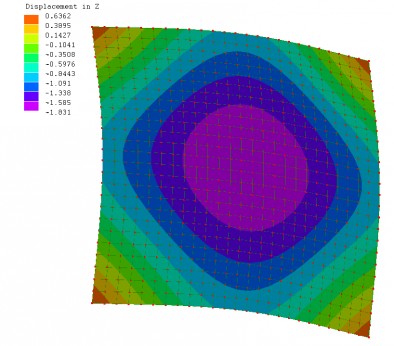

Glass plate (point fixed)
Deformazione di una lastra di vetro di 10 millimetri di spessore sotto un carico da vento di 100 kg/mq
Glass plate (point fixed). Displacements

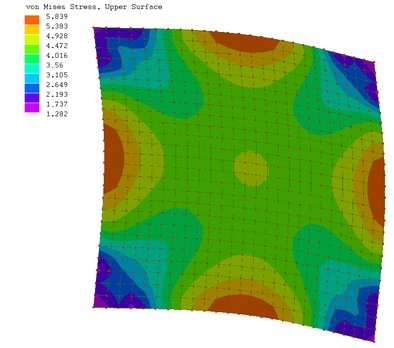

Glass plate (point fixed)
Stato di tensione su lastra di vetro temprata con azione del vento di 100 kg/mq
Stress, under 100 kg/sm wind load
Calcolo strutturale di balaustre in vetro stratificato

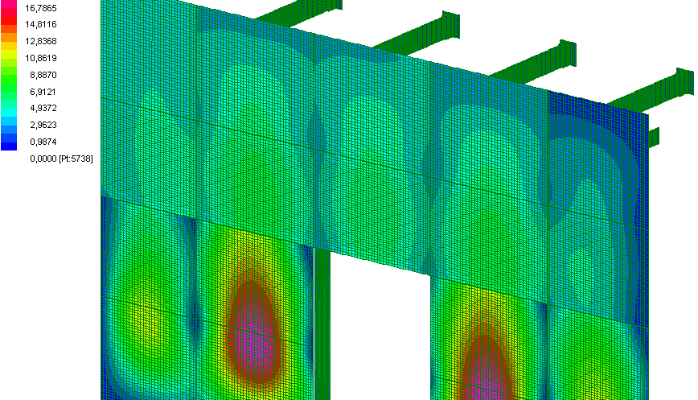

Calcolo strutturale agli elementi finiti vetro stratificato con SGP parete vetrata con montanti in vetro
